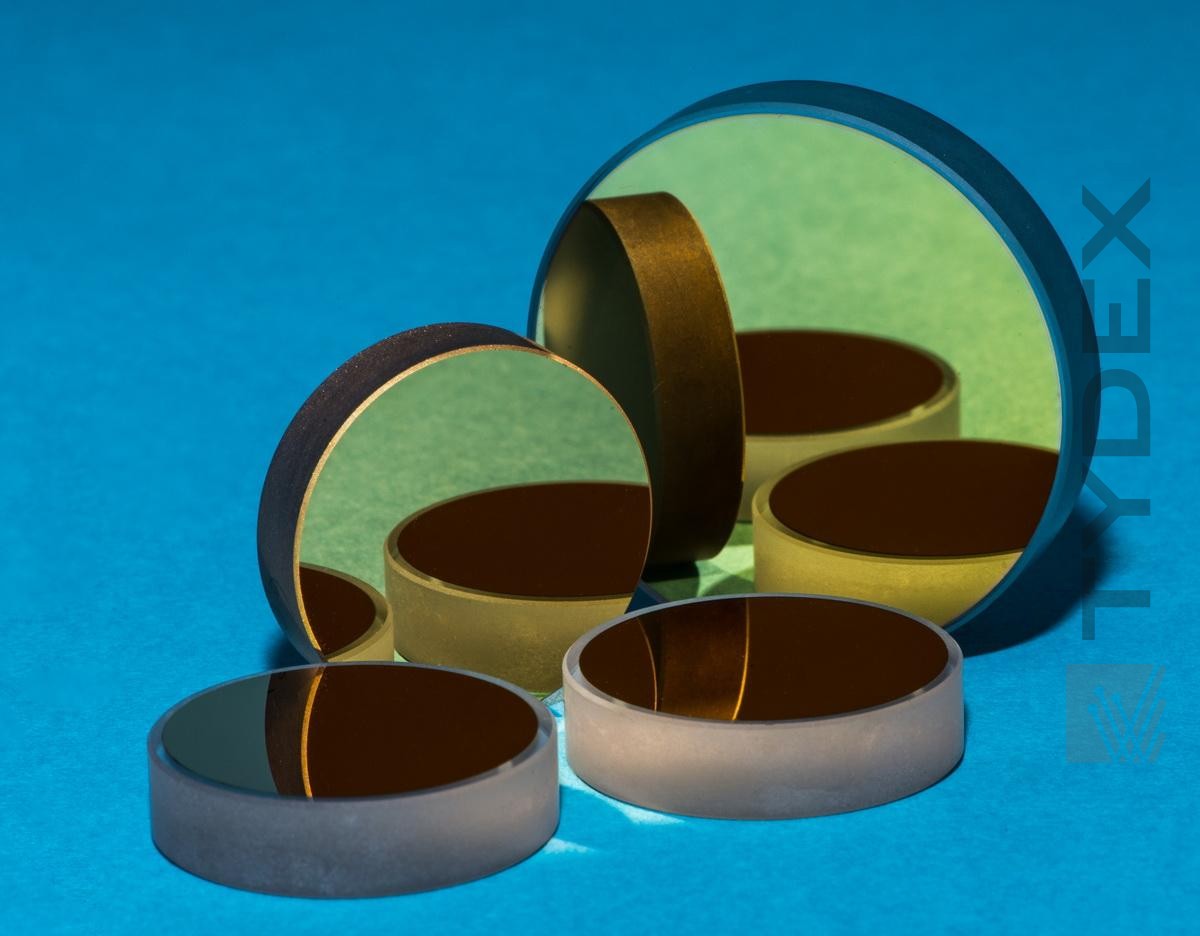

We offer mirrors for applications where THz radiation has to be fully reflected.
|Material of substrate||BK7|
|Clear apperture, %||>=90|
|Surface quality of polished surfaces, scr/dig||40/20|
|Surface quality of ground surface, Ra||2.5|
|Surface accuracy, λ@633nm||1/2|
|Thickness of gold layer, nm||~400|
Typical reflection curve is shown below. Measurements were made up to 1000 μm. However operating wavelength range is much wider.

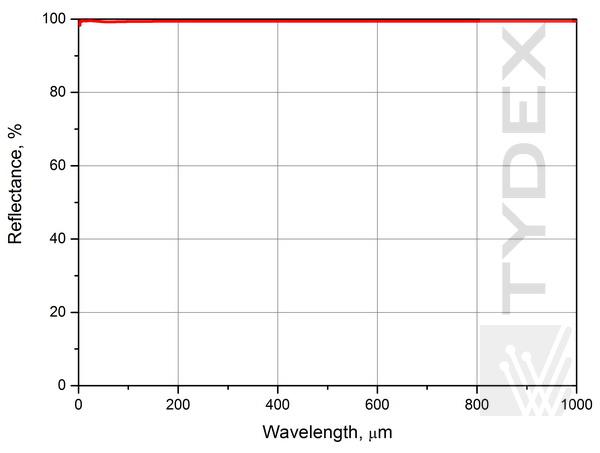

Fig. 1. Reflection od THz mirror.
The following THz mirrors are available from stock:
Custom sizes are manufactured upon request.
The finished parts of different dimensions are available from stock and supplied within a week.
Please check the Optics stock.
