THz Cuvettes

Download THz Cuvettes Datasheet (PDF, 78 KB)

THz cuvettes are intended for spectroscopic analysis of various substances. A cuvette is some volume interposed between two windows transparent in a specific wavelength range. The window material is selected depending on the measurement range. The basic configuration is supplied with TPX windows. On customer’s request they can be replaced with crystal quartz, sapphire or silicon windows.

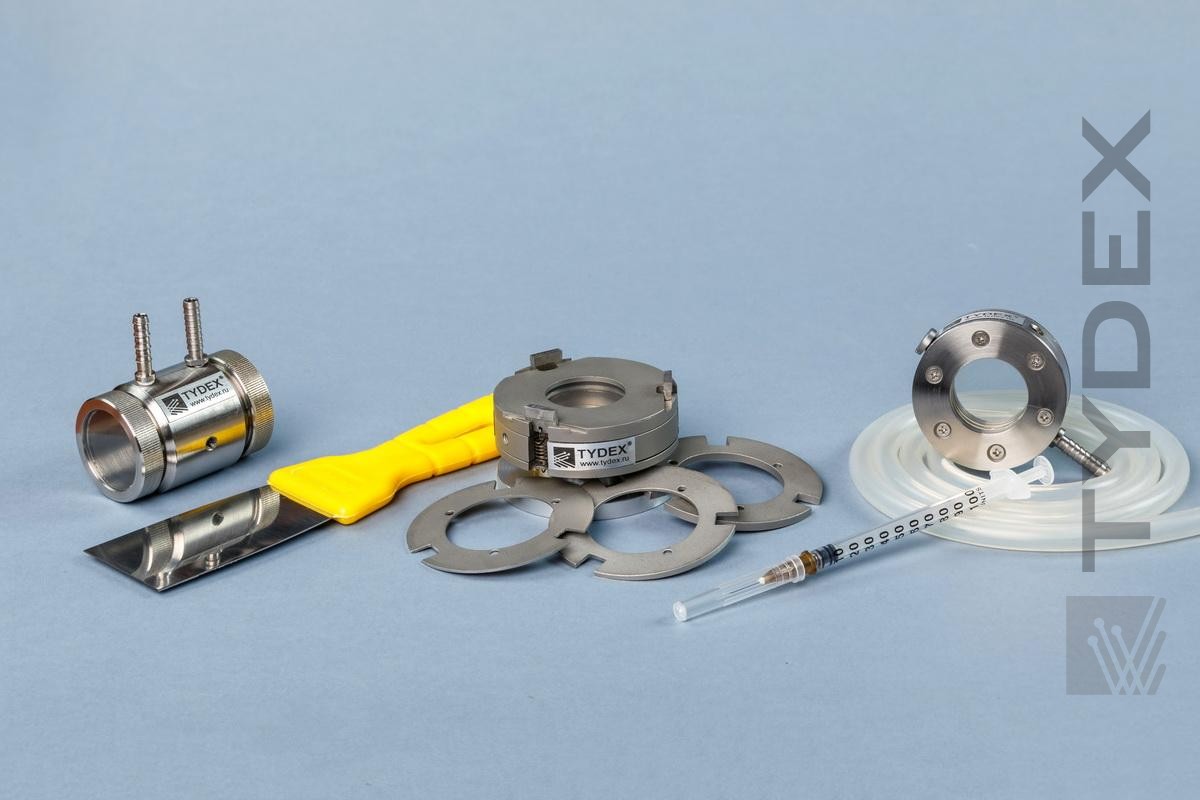

THz Cuvettes

TYDEX manufactures three types of THz cuvettes:

  • cuvettes for particulate samples;
  • cuvettes for liquid samples;
  • cuvettes for gaseous samples.

The standard cuvette characteristics are given below.

Characteristics Cuvette
for particulate samples
Cuvette
for liquid samples
Cuvette
for gaseous samples
Clear aperture, mm 25.0 25.0 25.0
Window material TPX TPX TPX
Sample thickness, mm 1, 2, 5, 10* 1 50
Package contents Baseplate, knife, liners Syringe, silicone tube,
additional nozzle
-

* - on request, the cuvette may be equipped with additional liners to increase the thickness of the sample

Standard cuvette dimensions

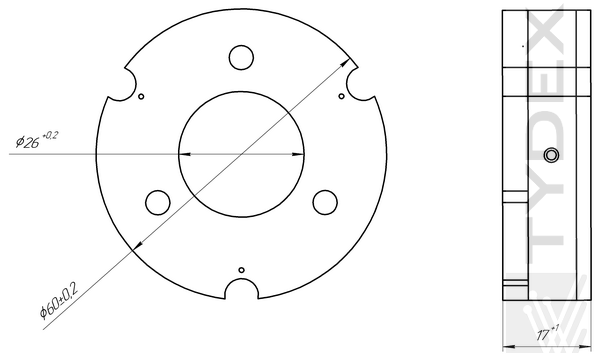

Cuvette for particulate samples

Cuvette for particulate samples

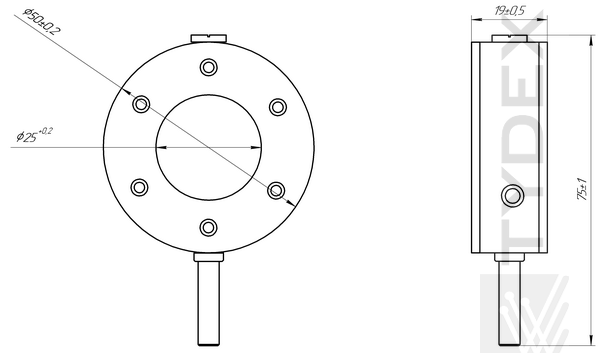

Cuvette for liquid samples

Cuvette for liquid samples

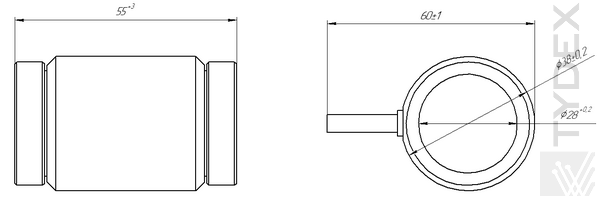

Cuvette for gaseous samples

Cuvette for gaseous samples

The standard THz cuvettes are available from stock.
Custom sizes are manufactured upon request. Minimum dimensions are in the table below.

Characteristics Cuvette
for particulate samples
Cuvette
for liquid samples
Cuvette
for gaseous samples
Minimum clear aperture, mm 12.5 12.5 12.5
Minimum sample thickness, mm 0.5 0.5 25.0

For price quotation and delivery please fill in our Request form.
